Features

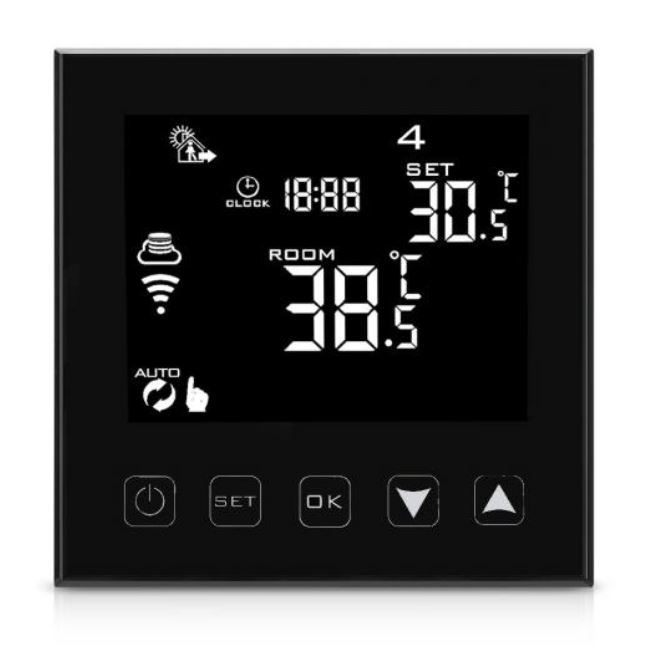

Appearance
(1) Standard total Size is 86*86mm
(2) Touch buttons to make simple operation
(3) The visible thickness above the wall is only 15mm86mm
(4) hidden box and 60mm European box
(5) Display size : 64*64mm
(6) Color: white,black
Functions
(A) Including built-in sensor and external sensor
(B) 0.5°C accuracy keeps temperature within the level you set.
(C) Children lock to prevent misoperation by children
(D) Data memory when power is off.
(E) Holiday mode make you enjoy more comfortable temperature in holiday
(F) The temperature of external sensor can be checked
Product Specifications
☆ Power: 90-240Vac 50/60HZ
☆ Range of temperature display: 0~40°C
☆ Max. control accuracy: 0.5°C
☆ Probe sensor: NTC(10k)1%
☆ Contact capacity: 3A/250V(WW);16A/250V(WE) ☆ Output: Switch relay
☆ Limit temperature range: 0~70°C
☆ Insulating condition: Normal environment
☆ Default setting temperature range：5~35°C
☆ Size(mm)：86*86*27
|
