کابل حرارتی خود تنظیم HeatTrace (up to 250℃ / 482℉)

(High temperature type)
self regulating heating cable

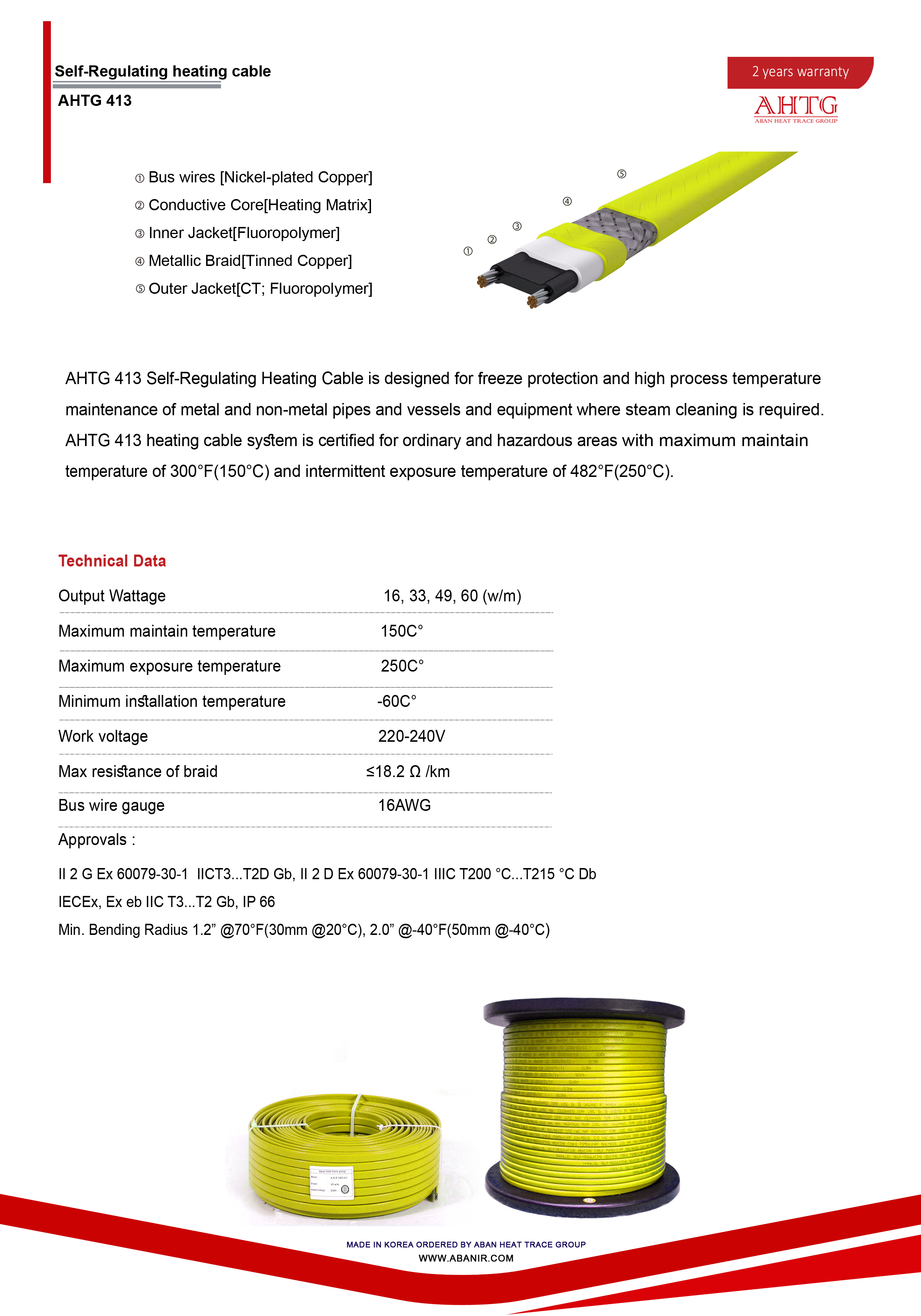

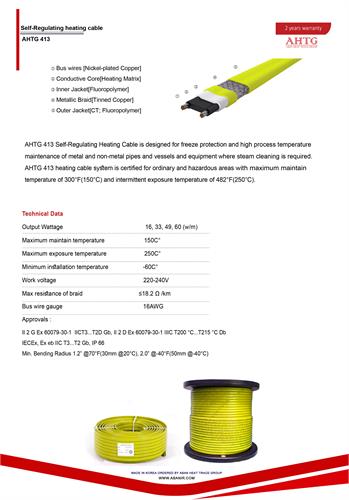

AHTG 413 Self-Regulating Heat Trace (up to 250℃ / 482℉)

high temperature self regulating up 250 C heat trace

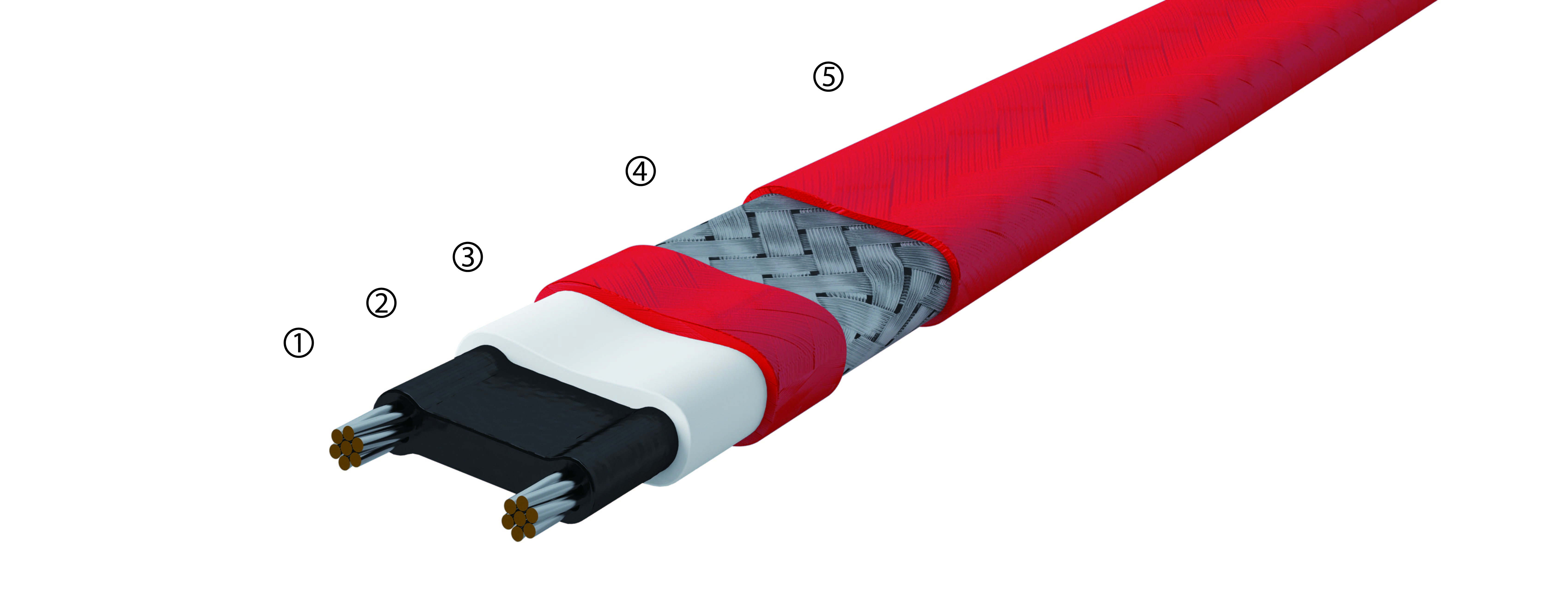

  1. Bus wires [Nickel-plated Copper]
  2. Conductive Core[Heating Matrix]
  3. Inner Jacket[Fluoropolymer]
  4. Metallic Braid[Tinned Copper]
  5. Outer Jacket[CT; Fluoropolymer]

The AHTG413 Self-Regulating Heating Cable is designed for freeze protection and high process temperature maintenance of metal and non-metal pipes and vessels and equipment where steam cleaning is required

AHTG 413  heating cable system is certified for ordinary and hazardous areas with maximum maintain temperature of 300°F(150°C) and intermittent exposure temperature of 482°F(250°C). Use of a AHTG 100 connection kits for AHTG 413  installation is required to comply with system approval,ensuring safe operation and reliable thermal performance




Max. Intermittent Exposure Temp.

(Heating device energized or de-energized)

 482°F(250°C)

Max. Maintain or Continuous Exposure Temp.

300°F(150°C)

Supply Voltage

 100~120 Vac, 200~277  Vac

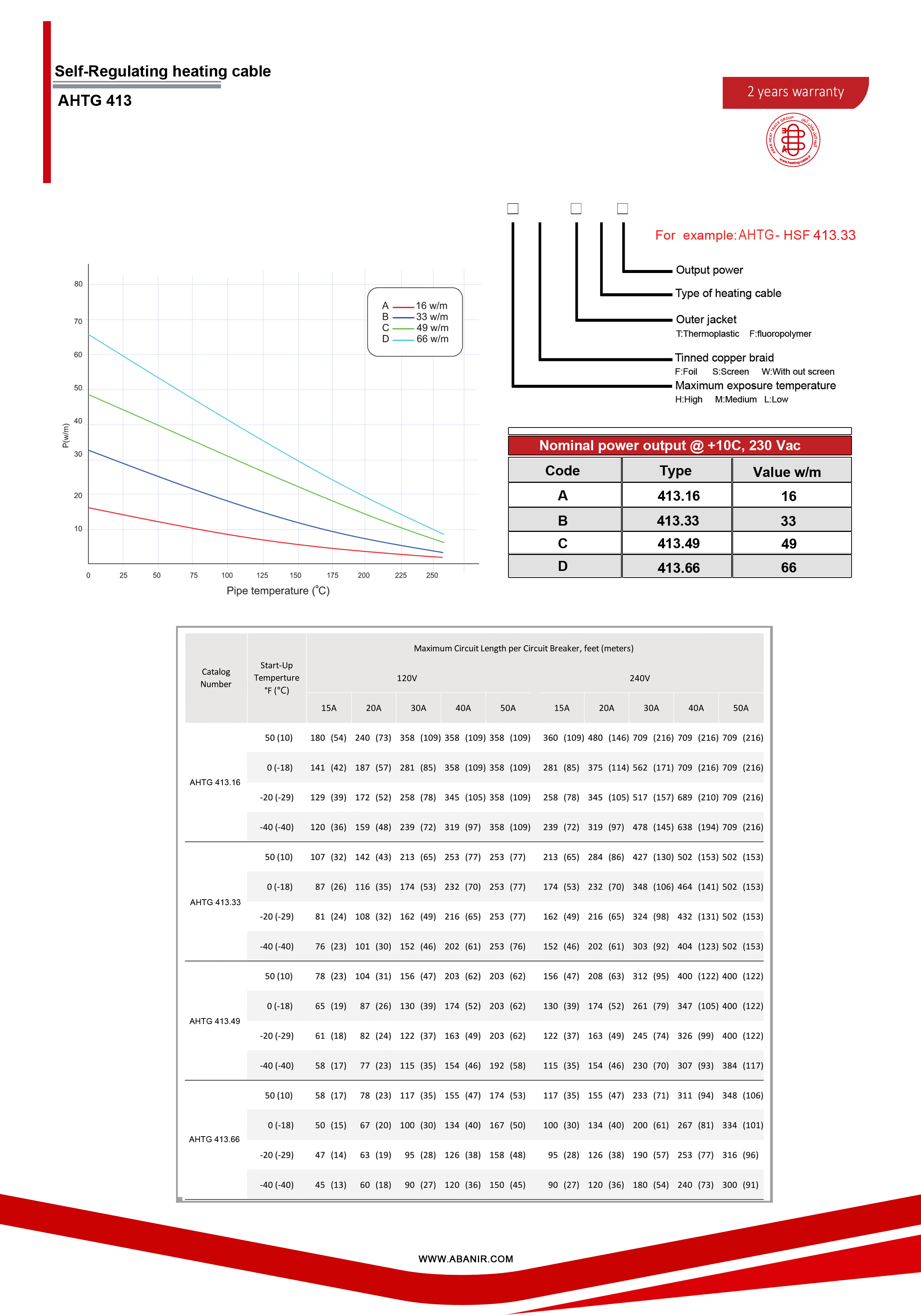

Output Wattage

 (16, 33, 49 ,66 W/m @10℃ on pipe)

Bus Wire Gauge

16AWG

Min. Bending Radius

 1.2” @70°F(30mm @20℃), 2.0” @-40°F(50mm @-40℃)

Min. Installation Temperature

 60-

 Protection



NEMA 4X, Type4X, IP66

Braid Electrical Resistance

Maximum 0.012Ω/m

Dimensions

13mm X 5mm (±10% tolerance)







مشخصه

AHTG 413

AHTG

2 سال
